جسر ألكسندر هاملتون Alexander Hamilton Bridge

Coordinates: 40°50′44″N 73°55′43″W / 40.8456°N 73.9287°W / 40.8456; -73.9287
(تم التحويل من Alexander Hamilton Bridge)
Alexander Hamilton Bridge

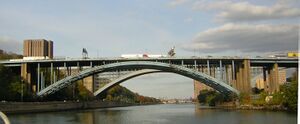

Alexander Hamilton Bridge from river jeh.jpg
Alexander Hamilton Bridge crossing the Harlem River in November 2007
Coordinates40°50′44″N 73°55′43″W / 40.8456°N 73.9287°W / 40.8456; -73.9287
Carries8 lanes of Invalid type: I / Invalid type: US
CrossesHarlem River
LocaleManhattan and The Bronx in New York City
Maintained byNYSDOT
Characteristics
DesignOpen-spandrel deck arch bridge
Total length2،375 أقدام (724 m)
Width[1]
Longest span555 أقدام (169 m)
Clearance below103 أقدام (31 m)
History
OpenedJanuary 15, 1963[2]
Statistics
Daily traffic177,853 (2016)[3]
رسم المرورnone
الموقع

The Alexander Hamilton Bridge is an eight-lane steel arch bridge that carries traffic over the Harlem River between the boroughs of Manhattan and the Bronx in New York City. The bridge connects the Trans-Manhattan Expressway in the Washington Heights section of Manhattan with the Cross Bronx Expressway as part of Interstate 95 (I-95) and U.S. Route 1 (US 1).

The bridge opened to traffic on January 15, 1963, the same day that the Cross Bronx Expressway was completed. For 2011, the New York City Department of Transportation, which operates and maintains the bridge, reported an average daily traffic (ADT) volume in both directions of 182,174, having reached a peak ADT of 192,848 in 1990.[4]

Design

Alexander Hamilton Bridge in May 2024

The total length of the bridge, including approaches, is 2،375 أقدام (724 m). Its parallel main spans are 555 أقدام (169 m) long and provide 103 أقدام (31 m) of vertical clearance over the Harlem River at the center and 366 أقدام (112 m) of horizontal clearance.[5]

The bridge design included a set of spiraling ramps (officially known as the Highbridge Interchange and colloquially known as "The Corkscrew") to connect to and from the Major Deegan Expressway (completed in 1964) and a viaduct ramp connecting to Harlem River Drive, both of which are over 100 أقدام (30 m) below the level of the bridge, and access to Amsterdam Avenue.[5]

التاريخ

After the George Washington Bridge, which connects Manhattan and New Jersey was completed in 1931, vehicles traveling between New Jersey and The Bronx would travel over the Washington Bridge, which crosses the Harlem River just north of the present Alexander Hamilton Bridge.[6] The Alexander Hamilton Bridge was planned in the mid-1950s to connect Robert Moses' proposed Trans-Manhattan and Cross-Bronx Expressways and to accommodate the additional traffic resulting from the addition of the six-lane lower level to the George Washington Bridge.[5][7] With the Interstate designation, 90% of the $21 million in construction costs were covered by the federal government. The bridge opened on January 15, 1963.[2]

Starting in 2009, the bridge underwent a full renovation.[8] China Construction America received the $407 million contract for the project.[9][10] While the traffic jams created from the construction had not been as bad as local officials had anticipated, inbound delays at the Hudson River crossings increased after the project began.[11] In July 2014, Governor Andrew Cuomo announced that the bridge renovation was complete.[12]

See also

References

  1. ^ "2011 New York City Bridge Traffic Volumes" (PDF). New York City Department of Transportation. October 2013. Retrieved February 28, 2013.
  2. ^ أ ب "New Bridge Completes L.I.-to-Jersey Bypass" (PDF). The New York Times (in الإنجليزية الأمريكية). April 14, 1963. p. 528. ISSN 0362-4331. Retrieved January 28, 2021.
  3. ^ "New York City Bridge Traffic Volumes" (PDF). New York City Department of Transportation. 2016. p. 9. Retrieved March 16, 2018.
  4. ^ "2011 New York City Bridge Traffic Volumes" (PDF). New York City Department of Transportation. March 2010. p. 74. Archived (PDF) from the original on May 28, 2010. Retrieved February 28, 2013.
  5. ^ أ ب ت "Compact NYSDOT Highway Record Plans: Beginning 1900". State of New York (in الإنجليزية). Retrieved 2023-11-27.
  6. ^ "Cross-city Tunnel Opens Tomorrow; Manhattan's First East-West Drive Goes Under Heights From Washington Bridge" (PDF). The New York Times (in الإنجليزية الأمريكية). June 26, 1940. p. 25. ISSN 0362-4331. Retrieved January 26, 2021.
  7. ^ Ingraham, Joseph C. (August 26, 1962). "Double-deck Span; George Washington Bridge Expansion Is Keystone of Vast Road Project Double-deck Span" (PDF). The New York Times (in الإنجليزية الأمريكية). p. 372. ISSN 0362-4331. Retrieved January 28, 2021.
  8. ^ Schweber, Nate (July 15, 2012). "Bracing for Big Traffic Jam That Didn't Come on Day 1". The New York Times. Retrieved August 1, 2012.
  9. ^ Semple, Kirk (2011-08-11). "Bridge Repairs by a Company Tied to Beijing". The New York Times (in الإنجليزية الأمريكية). ISSN 0362-4331. Retrieved 2025-02-16.
  10. ^ Caruso-Cabrera, Michelle (May 22, 2013). "Proudly Built in the USA—by the Chinese". CNBC. Retrieved February 16, 2025.
  11. ^ Wander, Erik (July 30, 2012). "GWB Traffic Getting Worse, Analysis Shows". Patch Media. Retrieved August 1, 2012.
  12. ^ "Governor Cuomo Announces Completion of Alexander Hamilton Bridge Rehabilitation". Governor Andrew M. Cuomo (in الإنجليزية). 2014-09-28. Archived from the original on February 25, 2021. Retrieved 2018-11-07.
